A Field Bus is a bus system that connects sensors and actuators to a control computer (PLC) for information exchange. Each manufacturer has designed its own communication mechanisms for its fieldbus so that all sensors and actuators can exchange information without interference.

What is the standard for field bus?

Fieldbus is defined in IEC standard 61158-2 : 3000. Detailed implementation requirements beyond the standard are available from the Fieldbus Foundation, an industry consortium that promotes Fieldbus technology.

Is Ethernet IP a fieldbus?

The majority of industrial components have historically been connected through serial fieldbus protocols, such as PROFIBUS, Control Area Network (CAN), Modbus and CC-Link. … The most popular Ethernet protocols include PROFINET, PROFINET IRT, Ether-CAT, EtherNet/IP, Sercos III and CC-Link.

What is the difference between fieldbus and Modbus?

Modbus defines as a protocol of serial communications produced by Medicon. It is using its PLCs (Programmable Logic Controllers). Fieldbus is a system of industrial network for real-time circulated control. …

What is the best fieldbus?

EtherCAT is by far the most widely accepted and adopted real-time Ethernet fieldbus standard. As described in the technical section, EtherCAT offers the best price/performance. And in this section, the conclusion is that EtherCAT will be the most durable and cost-optimized standard because there is safety in numbers.

What is difference between fieldbus and HART protocol?

The main differences frequently cited are HART is a hybrid protocol compatible with the installed base of 4–20 mA instruments, while FOUNDATION fieldbus is intended to be used as a multi-drop bus. … The emphasis of HART is to bring digital information while maintaining compatibility with 4-20 ma.

Is fieldbus a Modbus?

Modbus is often classified as a fieldbus protocol but with its various enhancements, particularly Modbus TCP, it has an even wider range of communication applications. … It sometimes takes courage to implement a more complex protocol in order to meet the needs of the whole system.

What are field level networks?

Field-level networks have been one of the keys to modern automation systems. Be it in factory, process, or building automation, networks allow for horizontal and vertical integration of distributed devices and functions.

What is the difference between Profibus and fieldbus?

Profibus PA is a master-slave protocol. A field device is a slave that can only respond to a command from a master. That means if a Profibus PA device experiences a problem, it can’t report the problem unless the host specifically asks. FOUNDATION fieldbus is a peer-to-peer protocol.

What is the difference between fieldbus and Ethernet?

“Fieldbus networks typically require an additional network interface card whereas Ethernet is typically built into the CPU itself, so no additional hardware is required,” he explains. “With that being said, there are many more field devices already in the market that support fieldbus networks.

Article first time published on

What IEC 61784?

IEC 61784-3:2021 explains some common principles that can be used in the transmission of safety-relevant messages among participants within a distributed network which use fieldbus technology in accordance with the requirements of IEC 61508 (all parts) for functional safety.

What is Foundation fieldbus basics?

Foundation Fieldbus is an all-digital, two-way, multi-drop communication system that brings the control algorithms into instrumentation. Foundation Fieldbus is a Local Area Network (LAN) for Foundation Fieldbus devices including process control sensors, actuators, and control devices.

Is RS-485 a fieldbus?

Many fieldbus standards specify RS-485 or RS-422 transceivers for implementing the physical layer in an industrial network. RS-485 transceivers are inexpensive and offer various useful features including multiple speed ranges.

What is difference between RS-485 and Profibus?

Both the Profibus and the RS485 are standards used in communication during process automation. … Profibus is a very flexible and reliable communication technology where issues can be caused by small and simple errors. On the other hand, RS485 is a more balanced technology that makes use of a two-wire transmission system.

What OSI layer is Ethernet IP?

TCP/IP is a layered protocol that can be mapped approximately to the OSI 7-layer network model (see Figure 3). On this diagram, Ethernet represents layers 1 (physical) and 2 (data link). The Internet protocol (IP) maps to layer 3 (network).

What is ENIP protocol?

Ethernet/IP (Ethernet Industrial Protocol) is a network communication standard capable of handling large amounts of data at speeds of 10 Mbps or 100 Mbps, and at up to 1500 bytes per packet. The specification uses an open protocol at the application layer. … Ethernet/IP typically employs active star network technology.

Is Ethernet a TCP or UDP?

EtherNet/IP makes use of TCP port number 44818 for explicit messaging and UDP port number 2222 for implicit messaging.

Which one is not advantage of field bus network?

Fieldbus Disadvantages: Complexity: As a fieldbus represents a complete system, qualified personnel are required for its use. Costs: The individual fieldbus components are considerably more expensive. Hazards in case of bus faults: The guide system can be cut off from the sensors and actuators.

What is Profibus protocol?

PROFIBUS communicates via a serial protocol behind which complex machinery is housed to transport the data reliably through an industrial environment. The protocol defines the message design, the access to the network and fault control.

What is LON controller?

LonWorks or Local Operating Network is an open standard (ISO/IEC 14908) for networking platforms specifically created to address the needs of control applications. The platform is built on a protocol created by Echelon Corporation for networking devices over media such as twisted pair, powerlines, fiber optics, and RF.

Which is better Profibus or Modbus?

Modbus supports up to 249 slaves and 1 master. Profibus supports up to 124 nodes, which can be masters or slaves. The transmission medium further restricts this. Modbus can be used on RS232, RS422 and RS485.

What IEC 61158?

The International Electrotechnical Commission’s IEC 61158 standard covers digital data communications for measurement and control. It has been developed for industrial computer network protocols offering real-time distributed control.

Is Profibus RS485?

The PROFIBUS DP network was developed as a quick solution based on an RS485 physical layer and the European standard EN-50170. The physical layer does not have to be copper – you can also have wireless or fiber optics.

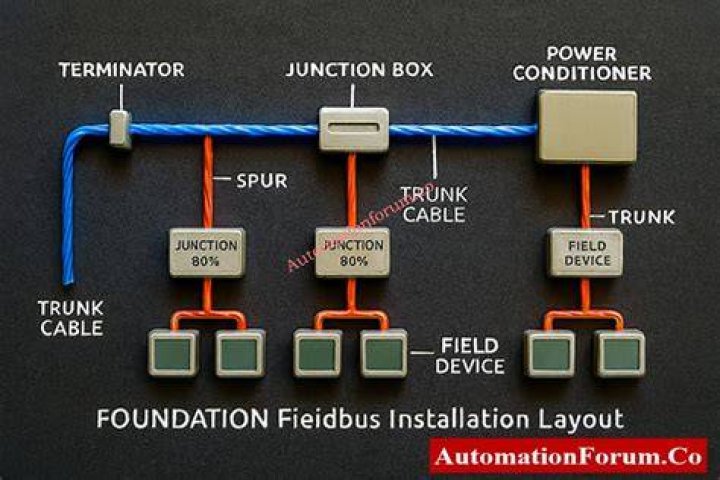

What is Field Foundation bus?

Foundation Fieldbus (styled Foundation Fieldbus) is an all-digital, serial, two-way communications system that serves as the base-level network in a plant or factory automation environment. … Foundation Fieldbus H1 – Operates at 31.25 kbit/s and is generally used to connect to field devices and host systems.

Which are the advantages of Foundation Fieldbus?

Foundation Fieldbus is a true Multidrop System and has numerous advantages including: Wiring savings. Hardware savings-fewer devices (instruments barriers and I/O) Documentation savings-Simpler layout and drawings.

What is the difference between HART and Modbus?

The advantages of MODBUS RTU are that it is strictly digital (RS485) and it’s relatively fast but it does require at least two wires for signal and two wires for power; unlike HART that has signal and power over the same two wires.

Can you daisy chain PROFINET?

Equipped with the EtherNet/IP and PROFINET protocol, the ADAM-6100 series also allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications.

What is difference between Ethernet and Modbus?

Modbus TCP/IP is simply the Modbus RTU protocol with a TCP interface that runs on Ethernet. With Ethernet, you are combining a versatile, scalable, and worldwide physical network (Ethernet) with a universal networking standard (TCP/IP) and a vendor-neutral data representation, Modbus.

What is the difference between Modbus and PROFINET?

PROFINET uses Ethernet for real time data exchange with a provider/consumer model whereas Modbus uses TCP/IP with a client/server model. … This is handled by each device being a provider of data, and a consumer of data at the same time, the controller sends the output data, devices send inputs.

What are the three main types of field-level networks?

This paper reviews the evolution of field-level networks comprising fieldbus systems, industrial Ethernet, and recent industrial wireless networks.

What are the three levels of factory network?

Within the automated factory there are three levels of network, as illustrated in Figure 1—device level networks at the lowest level, control networks in the middle level, and enterprise networks at the top.
